RGB/RGBW/RGBWW Controller(synchronization) User Manual

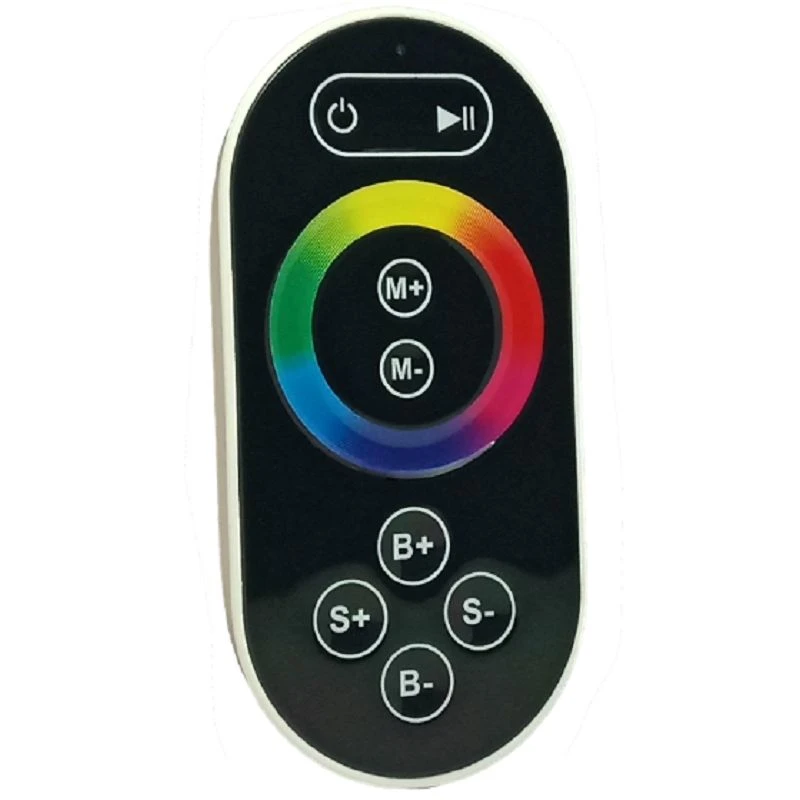

(A) Remote instruction
|
Button/Key |
Function |
Button/Key |
Function |
|
On/Off |
On/Off |
M+ |
Color program forward |
|
M- |
Color program backward |
B+ |
Increase brightness |
|
B- |
Decrease Brightness |
S+ |
Increase speed |
|
S- |
Decrease Speed |
Pause |
White(RGB mix)/ White/ White(RGBWW) |
|
Color Ring |
Different solid color |

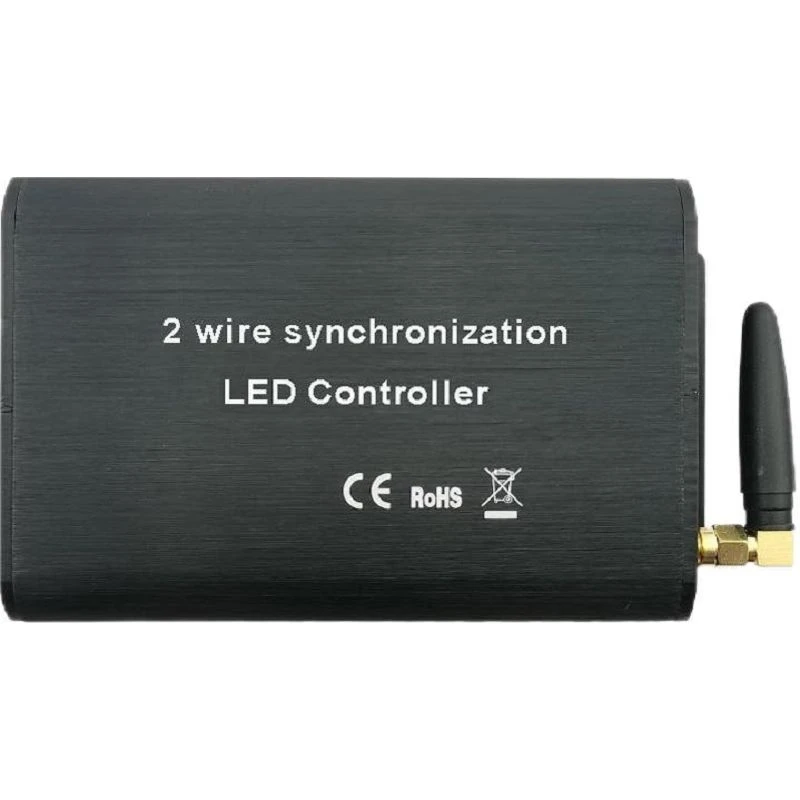

(B) RGB/RGBW/RGBWW Controller instruction
|
Button Function |
Button Function |
|
On/off: switch on/off |
Speed/Brightness +: increase speed or brightness |
|
Speed/Brightness-: decrease speed or brightness |
Color Program: change RGB/RGBW/RGBWW program |
(C) Color changing program
▼ RGB:
1. Red 2. Green 3. Blue 4. Yellow 5. Cyan 6. Purple 7. White
8. Dynamic change: red to green 9. Dynamic change: green to blue 10. Dynamic change: red to blue 11. Dynamic RGB changing 12. Dynamic Colorful changing
13.RGB fading effect 14. Colorful fading effect
▼ RGBW:
1. Red 2. Green 3. Blue 4. White 5.Yellow 6. Cyan 7. Purple 8. White(RGBW mixed white)
9. Dynamic change: red to green 10. Dynamic change: green to blue 11. Dynamic change: red to blue 12. Dynamic RGBW changing 13. Dynamic Colorful changing
14. RGBW fading effect 15. Colorful fading effect
▼ RGBWW:
1.Red 2. Green 3. Blue 4.Yellow 5. Cyan 6. Purple 7. White(3000K) 8.White(6000K) 9.White(4000K) 10. White(RGBWW mixed white) 11. Dynamic change: red to green
12. Dynamic change: green to blue 13. Dynamic change: red to blue 14. Dynamic colorful changing
15.RGBWW fading effect 16. Colorful fading effect

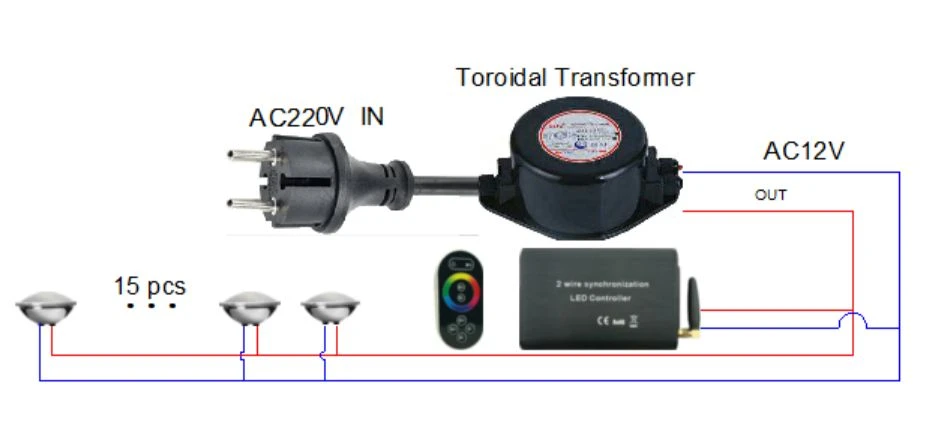

(D) Connection Diagram
▼ Remark: RGB/RGBW/RGBWW signal is strong enough within 100 meter, make sure the power cable is big enough to carry enough voltage(12V AC/DC) in order to avoid any voltage drop.

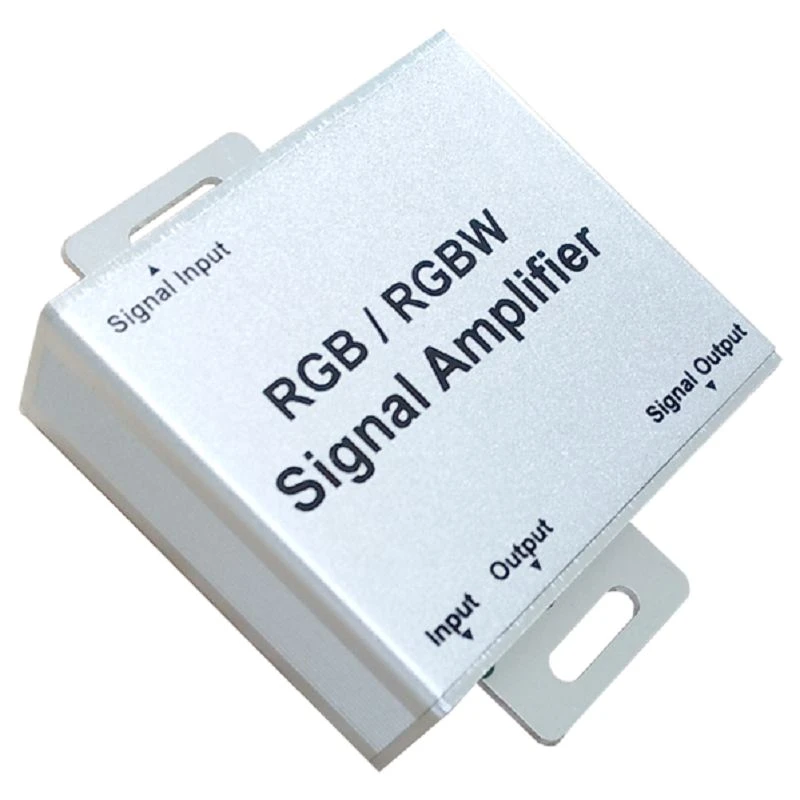

1 pc controller could connect 15 pcs lamps, if more than 15 pcs lamps, add amplifier to enhance signal.
(E) Match code/pairing
In order to avoid any unexpected interruption, Match code/Pairing between the controller and remote, then the controller and lamp, please do following 2 steps.
Step (1): Remote matches code with controller

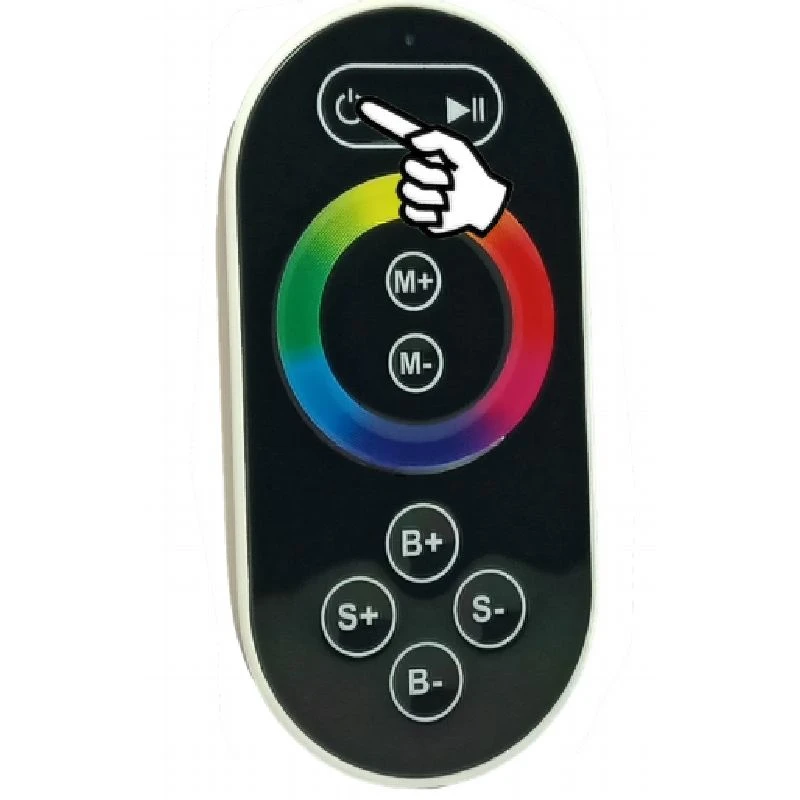

Connect the lamp & controller, switch off power, press "on/off" button of remote, then switch on power, the controller will beep within 3 seconds, the controller and remote are paired.
Step (2): Lamp matches code with controller

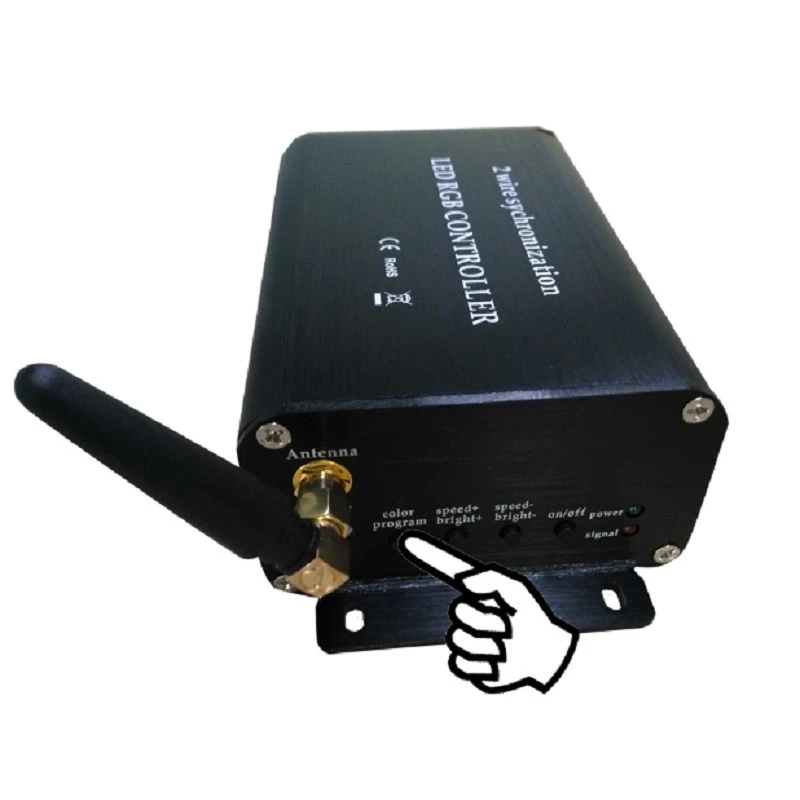

Connect the lamp & controller, switch off power, press "color program" button of controller, then switch on power, after 5 or above 5 seconds, release "color program" button finger, the lamp turn to white color, the controller and lamps are paired.
